Heli Kit, TREX 500L Dominator Kit

SKU: RC63050008

Be the first to review this product

Availability: In stock

US$422.29

Quick Overview

Heli Kit, TREX 500L Dominator Kit

Heli Kit, TREX 500L Dominator Kit

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Heli Kit, TREX 500L Dominator Kit

The internationally popular T-REX 500 has long been a trend setting helicopter, every enthusiasts probably has owned at least one. It is the ideal model for beginners as well as experts practicing advanced maneuvers. Now the T-Rex 500 evolution continues, as Align drops another shocker into the market; with even more innovative designed incorporated, the brand new T-REX 500L Dominator.

T-REX 500L firstly utilizes composite material integration technology on carbon side frame plates, also adding battery mounting rails and top mounted motor base design make assembly easy and protectable. Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts; the FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.

T-Rex 500L features high stability, excellent gust resistance, superior control feel, and being 500 is just the right size/price, it is the ultimate choice for enthusiasts.

Focus Shots

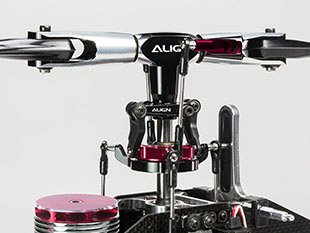

The 500FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.

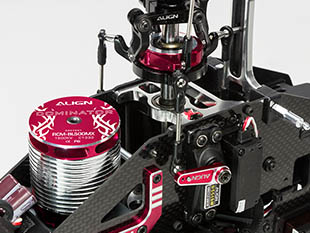

Top mounted motor base bringing the motor's center of gravity closer to rotating disc, improving 3D agility.
Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700L, for simplified servo installation and clean aesthetic.

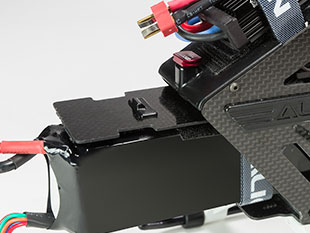

Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.

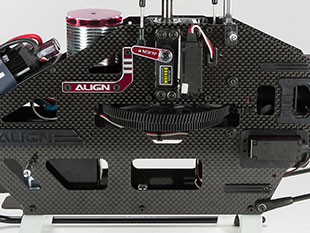

Carbon side frame plates utilized composite material integration technology, adding battery mounting rails.The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing. Frame reinforcement plates were added to effectively increase frame rigidity and increase anti-torsion ability.

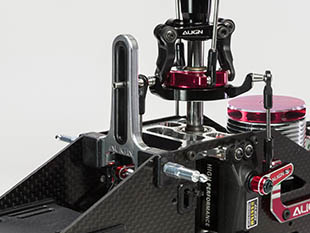

New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.

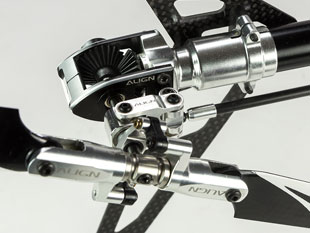

High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.



Standard equipment

●RCE-BL70G Brushless ESC X 1
●500MX Brushless Motor(1600KV) X 1

Specification

● Length: 863mm
● Height: 285mm
● Main Blade Length: 425mm
● Main Rotor Diameter: 989mm
● Tail Rotor Diameter: 206mm
● Motor Drive Gear:12T
● Main Drive Gear:134T
● Autorotation Tail Drive Gear: 145T
● Tail Drive Gear: 36T
● Drive Gear Ratio: 1:11.17:4.03
● Weight(With Motor): 1210g

Accessories

●T-REX 500L DOMINATOR Set X1
●500MX Brushless Motor(1600KV) X1
●RCE-BL70G Brushless ESC X1
●425 Carbon Fiber Blades X1

Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 2600 ~ 3300mAh x 1 (3300mAh suggestion)
●Digital Pitch Gauge
●Flybarless System X1 set
●DS515M Digital servo X3
●DS525M Digital servo X1




Additional Information

Brand Align
Dimensions No
Product Weight No
MPN RH50E13XT
Heli Category Heli Kits
Sub Category No
