Heli, TREX 500L Dominator Super Combo

SKU: RC63050007

Be the first to review this product

Availability: In stock

Regular Price: US$719.97

Special Price: US$616.13

Quick Overview

Heli, TREX 500L Dominator Super Combo

Heli, TREX 500L Dominator Super Combo

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Heli, TREX 500L Dominator Super Combo


The internationally popular T-REX 500 has long been a trend setting helicopter, every enthusiasts probably has owned at least one. It is the ideal model for beginners as well as experts practicing advanced maneuvers. Now the T-Rex 500 evolution continues, as Align drops another shocker into the market; with even more innovative designed incorporated, the brand new T-REX 500L Dominator.

T-REX 550L firstly utilizes composite material integration technology on carbon side frame plates, also adding battery mounting rails and top mounted motor base design make assembly easy and protectable. Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts; he FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.

ALIGN new multifunctional Gpro flybarless system with active CPU, processing 20 times faster than previous generation. The freshly new software structure improves system compensation, bring Gpro up with precise and agile response, and also keep up-to-date flying performance than ever.

T-Rex 500L features high stability, excellent gust resistance, superior control feel, and being 500 is just the right size/price, it is the ultimate choice for enthusiasts.

Focus Shots

The 500FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.

Top mounted motor base bringing the motor's center of gravity closer to rotating disc, improving 3D agility.
Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700L, for simplified servo installation and clean aesthetic.



Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.

Carbon side frame plates utilized composite material integration technology, adding battery mounting rails.The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing. Frame reinforcement plates were added to effectively increase frame rigidity and increase anti-torsion ability.



New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.

ALIGN new multifunctional Gpro flybarless system with active CPU, processing 20 times faster than previous generation. The freshly new software structure improves system compensation, bring Gpro up with precise and agile response, and also keep up-to-date flying performance than ever.



High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.

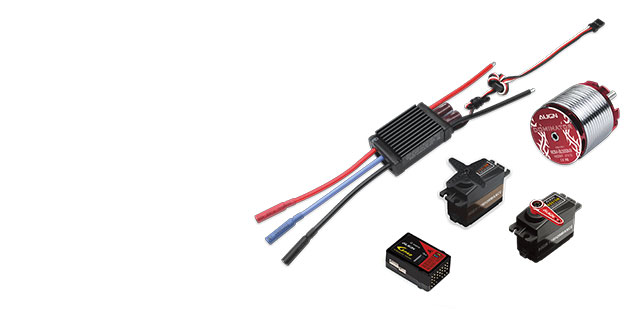

Standard Equipment

●Gpro Flybarless System X 1 set
●RCE-BL70G Brushless ESC X 1
●500MX Brushless Motor(1600KV) X 1
●DS515M Digital servo X 3
●DS525M Digital servo X 1

Specifications

● Length: 863mm
● Height: 285mm
● Main Blade Length: 425mm
● Main Rotor Diameter: 989mm
● Tail Rotor Diameter: 206mm
● Motor Drive Gear:12T
● Main Drive Gear:134T
● Autorotation Tail Drive Gear: 145T
● Tail Drive Gear: 36T
● Drive Gear Ratio: 1:11.17:4.03
● Weight(With Motor): 1210g

Accessories

●T-REX 500L DOMINATOR Set X1
●Gpro Flybarless System X1 set
●425 Carbon Fiber Blades X1
●500MX Brushless Motor(1600KV) X1
●DS515M Digital servo X3
●DS525M Digital servo X1
●RCE-BL70G Brushless ESC X1


Radio transmitter and electronic equipment required for assembly:

●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 2600 ~ 3300mAh x 1 (3300mAh suggestion)
●Digital Pitch Gauge



Gpro Programmable Flybarless System

ALIGN new multifunctional Gpro flybarless system with active CPU, processing 20 times faster than previous generation. The freshly new software structure improves system compensation, bring GPro up with precise and agile response, and also keep up-to-date flying performance than ever.The most important is that utilizes with latest iOS and Android APP can be easily and directly adjusted through mobile phone while at the field. New human oriented interface allows convenient and rapid setup and installation.

●Brand new CPU, processing 20 times faster than previous generation, bring GPro up with precise and agile response.
●Freshly new software process structure improves system compensation and keep up-to-date flying performance.
●Utilizes with latest iOS and Android APP that GPro can be easily and directly adjusted through mobile phone while flying outdoors....[+] More


Gpro Programmable Flybarless System

●Operating voltage range:DC 3.5V~8.4V
●Operating current consumption:<100mA @4.8V
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Sensor resolution:12bit
●Supports 90/120/135/140 CCPM swashplates
●Spektrum and JR Satellite antennas support (Replaces original factory receiver)
●Futaba S.BUS/JR X.BUS system support
●Rudder support 760μ narrow band servos
●Supports multi-blade rotor heads
●Engine speed governor range:10500-21000 RPM
●Operating Temperature:-20~65 degree
●Operating Humidity:0%~95%
●Size:36.5x25.2x15.6 mm
●Weight:11.5g
●RoHs cerification stamp


Gpro Program download                  Manuals Download
Introduction Videos
Gpro



Introduction Videos
Introduction Videos
Introduction Videos



Introduction Videos
Introduction Videos
Introduction Videos





Additional Information

Brand Align
Dimensions No
Product Weight 1210g
MPN RH50E07XW
Heli Category Heli Kits
Sub Category No
