Heli, TREX 760X F3C Dominator Super Combo - Blue

SKU: RC63076006

Be the first to review this product

Availability: In stock

US$2,267.22

Quick Overview

Heli, TREX 760X F3C Dominator Super Combo - Blue

Heli, TREX 760X F3C Dominator Super Combo - Blue

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

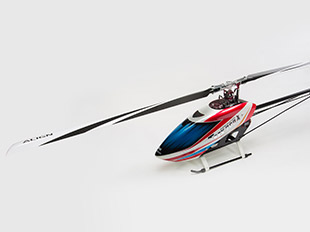

Heli, TREX 760X F3C Dominator Super Combo - Blue

The brand new Align T-REX 760X features with new body length and new 760 main blade, as for T-REX 760X F3C utilize the new design F3C fuselage with low wind resistance, streamline appearance and convenient disassembly providing a breakthrough performance no matter in static or 3D flight.

The new 700FL rotor head system can use new F3C rotor holder arm and 3D rotor holder arm. F3C rotor holder arm effectively doubles the flight stability with excellent and precise control accuracy not only has more advantages in the static flight also provide the perfect controlling feel in 3D flight. 3D rotor holder arm suitable for extreme 3D flight provides the more direct and faster control response. Main rotor grip arm and linkage rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance. Also the new 760 main blade features with better flight stability and superior lift making the T-REX 760X in the control feel and stability better than other models. Utilized the three tail blade set as standard accessory feature with excellent controlling feel and superior tail authority allowing you to enjoy the flying no matter F3C or 3D flight.

T-REX 760X introduced the advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the T-REX 760X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 760X the leader in this class. The lightweight structure design which significantly reduce the body weight can effectively increase your flight time.

The T-REX 760X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopter’s high quality design is accented with precision machined red and silver metal parts. The brand new Platinum HV 160A V4 ESC supplies extreme power. The ESC includes a superior governor and BEC. The NEW DS820M/DS825M high voltage brushless servos are more efficient and outperform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.

T-REX 760X F3C introduced many new design with top equipment and new F3C fuselage must provide you the best F3C flying experience.

Focus Shots


RH70E23XW

Landing skid is tilted 5 degree forward which improves crashworthiness.

RH70E23XW

New extended 760 carbon fiber main blades effectively improve the flying stability and power performance. Enhance the power for better control and redefine your flying experience. And it features new airfoil and printed graphics, increased rigidity and extended length, effectively increases anti-torsion strength during flight.


RH70E23XW

Brand new tail blade designed to sustain optimal tail authority performance under high head speed and extreme flight conditions.

RH70E23XW

New 760 F3C Fuselage applies aerospace data operations featuring with the low wind resistance aerodynamic lines, while stabilizing the helicopter during F3C flight routines and advancing the great performance of T-Rex 700E F3C even higher, achieving total dominance in class P and F of F3C. Custom designed floating fuselage mounting system effectively reduce helicopter vibration and minimize resonance effect; The light weight fiberglass and carbon fiber construction weights only 520g, maintaining the optimal power to weight ratio of the helicopter; Colorful paint scheme enhance the streamline profile, in countless ingenuity create a different F3C fuselage which is worthy of unique you.


RH70E23XW

Unique quick release design of the front fuselage for battery access with removal of just 2 screws.
The classic magnetite on the edge of the fuselage can be attracted to each other firmly make the assembly easy.

RH70E23XW

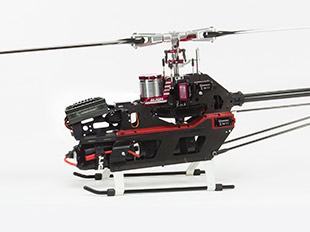

Engineered Narrow Body Design efficiently decreases gear abrasion and machine deformation. The Align T-Rex 700X newly designed narrow body is more powerful and has longer flying durability.


RH70E23XW

The 700EFL Flybarless Rotor Head System utilizes extreme low CG design to effectively reduce resistance during 3D maneuvers while increasing flight responsiveness and precision. In addition, the high quality of the helicopter design is accented with red anodized and stainless color precision machined metal parts.

RH70E23XW

Two new holder arms with CNC cutting provide a neat and smooth lines and appearance, showing out of the ordinary. After thinking again and again and numerous washes to practice the essence, gestate a new F3C holder arm, effectively doubling the flight stability, and the excellent fine control accuracy; not only in the static flight has more advantages in the dynamic flight also has more outstanding control feeling. The 3D holder arm has excellent rigidity and toughness, suitable for extreme 3D flight, features with more direct and faster response, also enhance the flight stability, allowing to stimulate the infinite possibilities.


RH70E23XW

Main Rotor Grip Arm and Linkage Rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance.

RH70E23XW

Align Advanced Metal Swashplate firmly connects to rotor grips preventing rotor head disengagement during intense flight. Two linkage ball mounting holes provided to improve control of system movement. A resolution hole or larger movement reaction hole can be selected based on your flying preference or style.


RH70E23XW

The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.

RH70E23XW

Our new 850MX motor inherited features from the previous 800MX such as high efficiency, superior power, excellent torque, low current draw, and a low operating temperature. The 850MX is capable of maintaining a more consistent torque and head speed through continuous 3D maneuvers. This is a particularly designed for 3D flights.


RH70E23XW

The CNC Plate is designed to strengthen the Align 700X frame while efficiently acting as a heat sink to efficiently dissipate motor heat. (This can lower motor temperature up to 20 degrees Celsius during flight).

RH70E23XW

Use with HOBBYWING Platinum HV V4 ESC:
1.Fast throttle feedback, much stable and agile performance enhancement.
2.Fast processer extend.
3.Cool ESC temperature keep performance much reliable.
4.Support ASBOX Multifunction Programmer set up.
5.Support Firmware Update.


RH70E23XW

New 3K Main frame embedded with battery mounting rails with patented spring loaded latching mechanism. Brand new CG adjustable CNC Aluminum Battery Mount with movable latch design allow to adjust CG for different battery size, as well as providing great protection for the battery and convenient way for mounting.

RH70E23XW

Designed specifically for helicopters, utilizing a brushless motor for fast speed, high torque, and super efficient reaction time, allowing the Align 700X to perform faster with precision. The brand new DS820M high voltage brushless servo is equipped with a new CNC machined aluminum case. This new aluminum case exhibits top of the line servo aesthetics while providing a heat sink function for the best protection of the servo.


RH70E23XW

Integration of CNC Aluminum alloy and POM Polyacetal which can lower friction between the linkage ball and the Metal Anti Rotation Bracket. In addition, this new design increases the efficiencies and accuracy of the servos.

RH70E23XW

Composite material side plates engineered by exclusive embedding technology, which strengthens the entire structure and eases serviceability.


RH70E23XW

Highly enhance structural strength, effectively increase the torsional capability.

RH70E23XW

The brand new 700E three tail blade set is specially made from aerospace grade aluminum alloy with precise mechanical process, highly enhance structural rigidity and precision. Total 3 tail blades design allow to achieve superior tail-lock performance and excellent controlling feel. For those who is addicted to 3D flying, you must convert to the three tail blade set and enjoy the amazing powerful flight performance.



760 3D Standard Equipment

●760X Painted Canopy x 1
●3D Holder Arm x 1
●Progressive Lightweight Landing Skid x 1
●700 PRO Carbon Fiber Vertical Stabilizer x1
●Main Blade Holder x 1
RH76E11XW


760 F3C Fuselage Equipment

●F3C Holder Arm x 1
●Tail Transmission Gear Box x 1
●Frame Mounting Foam x 1
●Frame Mounting Block x 1
●Carbon Fiber Frame Mounting Plate x 1
●Landing Skid Set x 1
●Main Blade Holder x 1
RH76E11XW


Electric equipment

●Platinum HV 160A V4 Brushless ESC x 1
●850MX Brushless Motor(490KV/4535) x 1
●DS820M High Voltage Brushless Servo x 3
●DS825M High Voltage Brushless Servo x 1
●Microbeast PLUS Flybarless System x 1
RH76E11XW


Specification

●Length: 1500mm
●Height: 375mm
●Width: 240mm
●Main Blade Length: 760mm
●Main Rotor Diameter: 1702mm
●Tail Rotor Diameter: 287mm
●Motor Drive Gear:12T
●Main Drive Gear:112T
●Autorotation Tail Drive Gear: 102T
●Tail Drive Gear: 23T
●Drive Gear Ratio: 9.33:1:4.43
●Weight(w/o Battery): Approx. 4200g

Accessories

●T-REX 760X Kit Set x 1 set
●T-REX 760 F3C Fuselage x 1
●760 Carbon Fiber Blades x 1 set(2pcs)
●105mm Carbon Fiber Tail Blades x 1 set(3pcs)
●850MX Brushless Motor(490KV/4535) x 1
●DS820M High Voltage Brushless Servo x 3
●DS825M High Voltage Brushless Servo x 1
●Platinum HV 160A V4 Brushless ESC x 1
●Microbeast PLUS Flybarless System x 1


Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 5200 ~ 6000mAh x 2
●Digital Pitch Gauge

Additional Information

Brand Align
Dimensions No
Product Weight No
MPN RH76E11XT
Heli Category Heli Kits
Sub Category No
