Heli, TREX 600L Dominator Super Combo

SKU: RC63060011

Be the first to review this product

Availability: In stock

Regular Price: US$1,245.41

Special Price: US$934.58

Quick Overview

Heli, TREX 600L Dominator Super Combo

Heli, TREX 600L Dominator Super Combo

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Heli, TREX 600L Dominator Super Combo

Equipped with Align’s new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance. GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.

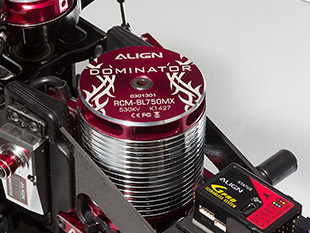

Powered by 750MX/530KV motor engraved with DOMINATOR insignia, providing extraordinary power output. The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.

Align’s 2014 flagship T-Rex 600L Dominator, incorporates all the top grade upgrades, and the new generation GPro flybarless system, with stability and power exceeding all past expectations. The superior control feel, and attractive look, the T-Rex 600L Dominator is the top choice for any enthusiasts!

Focus Shots

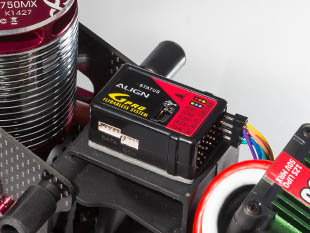

Equipped with Align's new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance. GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.

Top mounted motor base bringing the motor's center of gravity closer to rotating disc, improving 3D agility.

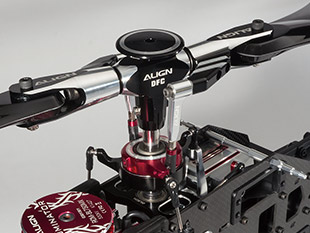

Equipped with the low CG DFC rotor head, effectively reduce wind resistance during flight, providing the most direct and precise control feel back to the pilot, and exhibits exhilarating 3D performance and unimaginable flight speed. The brand new spindle shaft design features enlarged diameter from 6mm to 8mm, with oversized M5x10mm spindle screws to increase the rigidity of the overall rotor head.



Brand new 600E PRO Performance Booster designed specifically to bump up the power output of T-Rex 600E PRO by 30% by upgrading the motor from 600MX motor (3300w/5500w) to 750MX/530KV motor (4400w/7260w). The feel as if a turbo charger was added to the helicopter, with dramatic increase of motor torque output, and near bulletproof governing speed of the rotor, while maintaining power consistency throughout the entire flight duration.

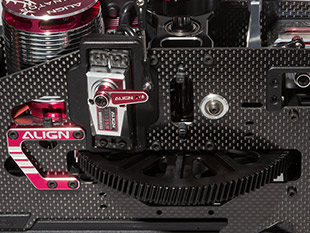

Top mounted motor base and imbedded servo mounts. The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.

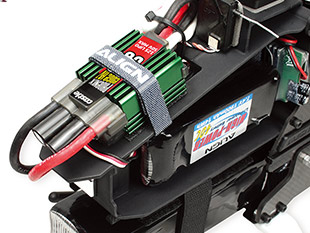

New lightweight H-cross section for electronic equipments.

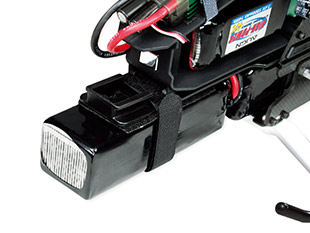

Sliding battery tray rails imbedded into 3K Side frame.

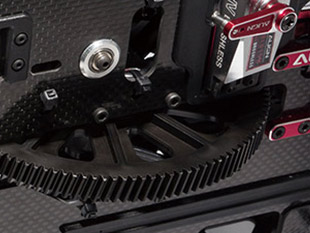

Equipped with new high strength CNC M1/118T helical main gear and tail drive bevel gear assembly, featuring reinforced overall gear structure and increased gear thickness, effectively improves gear's anti torsion ability to prevent gear from deforming under extreme power, reducing gear wear and power loss.

CNC machined aluminum pieces including servo mount.

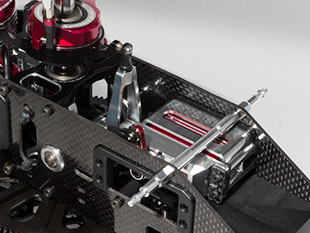

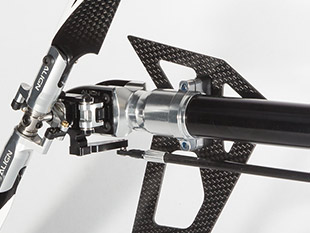

New tail control assembly with dual mounting points, effectively eliminate slop and improve control precision and feel.
Utilizes newly developed, highest spec and superior anti-wear material to increase the overall strength and durability for torque tube drive gear. Effectively minimize gear striping and crash damage.

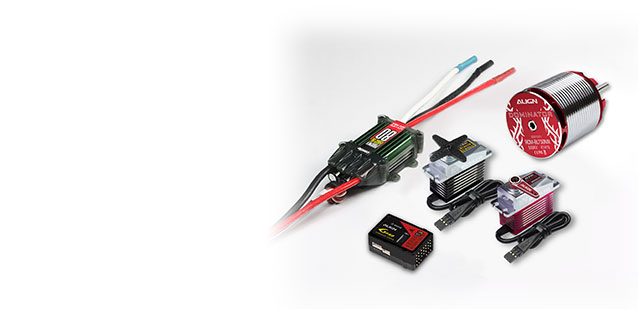

Standard Equipment

●Gpro Flybarless System X 1 set
●Castle EDGE HV 80 Brushless ESC x 1
●750MX Brushless Motor(530KV) x 1
●BL815H High Voltage Brushless Servo x 3
●BL855H High Voltage Brushless Servo x 1

Specification

● Length: 1160mm
● Height: 319mm
● Width: 210mm
● Main Blade Length: 600mm
● Main Rotor Diameter: 1347mm
● Tail Rotor Diameter: 260mm
● Motor Drive Gear:14T
● Main Drive Gear:118T
● Autorotation Tail Drive Gear: 131T
● Tail Drive Gear: 34T
● Drive Gear Ratio: 1:8.42:3.85
● Weight(With Motor): 2900g

Accessories

●T-REX 600L DOMINATOR Set x 1set
●600 Carbon Fiber Blades x 1set
●95 Carbon Fiber Tail Blade x 1set
●750MX Brushless Motor(530KV) x 1
●BL815H High Voltage Brushless Servo x 3
●BL855H High Voltage Brushless Servo x 1
●Castle EDGE HV 80 Brushless ESC x 1
●Gpro Flybarless System x 1set

Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 2600 ~ 4600mAh x 2 (3300mAh suggestion)
●Digital Pitch Gauge/Dial Pitch Gauge



Gpro Programmable Flybarless System

ALIGN new multifunctional Gpro flybarless system with active CPU, processing 20 times faster than previous generation. The freshly new software structure improves system compensation, bring GPro up with precise and agile response, and also keep up-to-date flying performance than ever.The most important is that utilizes with latest iOS and Android APP can be easily and directly adjusted through mobile phone while at the field. New human oriented interface allows convenient and rapid setup and installation.

●Brand new CPU, processing 20 times faster than previous generation, bring GPro up with precise and agile response.
●Freshly new software process structure improves system compensation and keep up-to-date flying performance.
●Utilizes with latest iOS and Android APP that GPro can be easily and directly adjusted through mobile phone while flying outdoors....[+] More

Gpro Programmable Flybarless System

●Operating voltage range:DC 3.5V~8.4V
●Operating current consumption:<100mA @4.8V
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Sensor resolution:12bit
●Supports 90/120/135/140 CCPM swashplates
●Spektrum and JR Satellite antennas support (Replaces original factory receiver)
●Futaba S.BUS/JR X.BUS system support
●Rudder support 760μ narrow band servos
●Supports multi-blade rotor heads




●Engine speed governor range:10500-21000 RPM
●Operating Temperature:-20~65 degree
●Operating Humidity:0%~95%
●Size:36.5x25.2x15.6 mm
●Weight:11.5g
●RoHs cerification stamp


Gpro Program download
Manuals Download
Introduction Videos
Gpro


Introduction Videos
Introduction Videos
Introduction Videos

Introduction Videos
Introduction Videos
Introduction Videos





Additional Information

Brand Align
Dimensions No
Product Weight 2400g
MPN RH60E11XT
Heli Category Heli Kits
Sub Category No
