Standard Equipment:
●ALIGN E1 V2 Kits Set x 1 set
●900mm Carbon Fiber Blades/3 x 1 set
●115mm Fiber Tail Blades x 1 set
●Main Power - 1000MX Brushless Motor(350KV) x 1

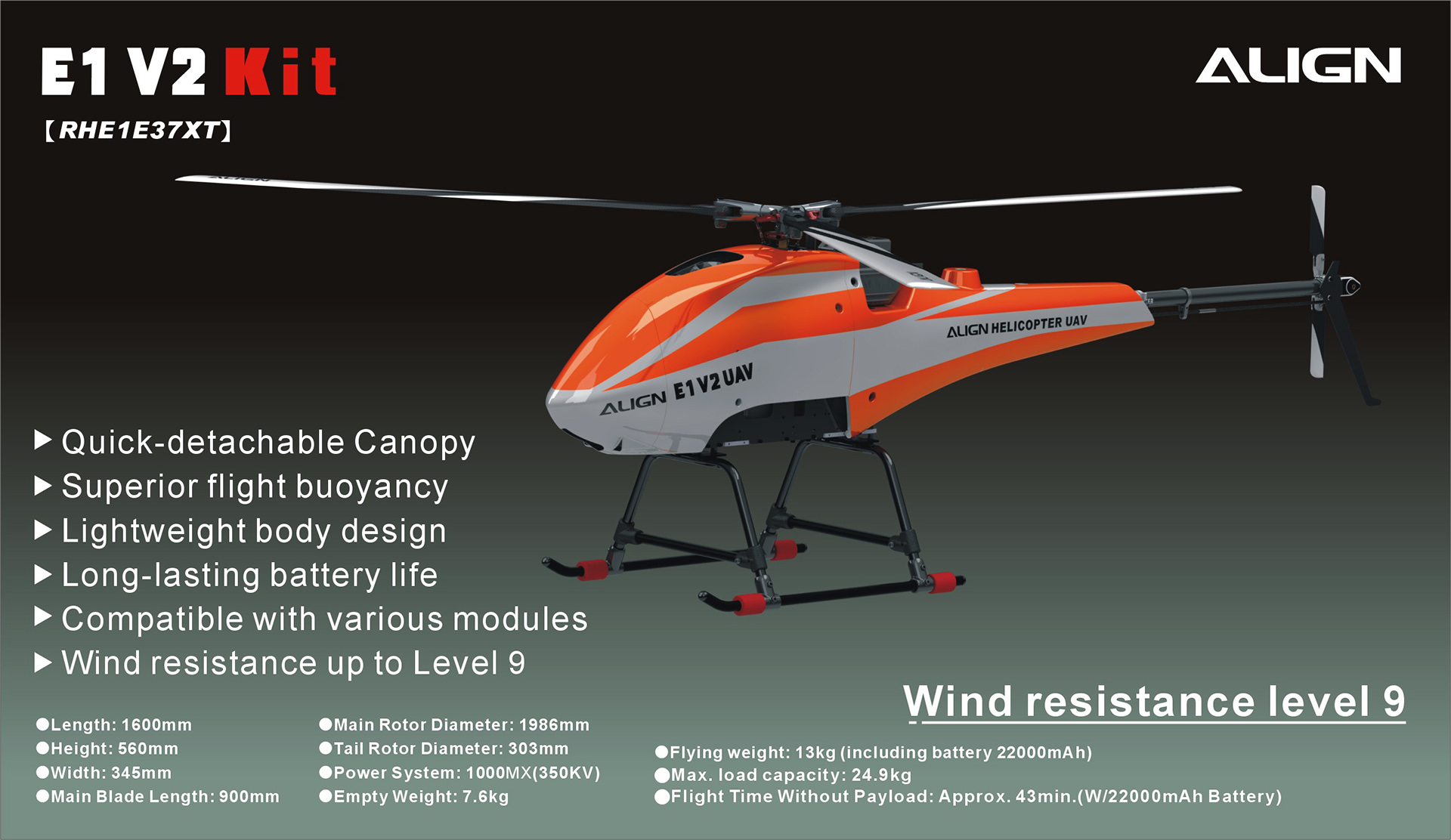

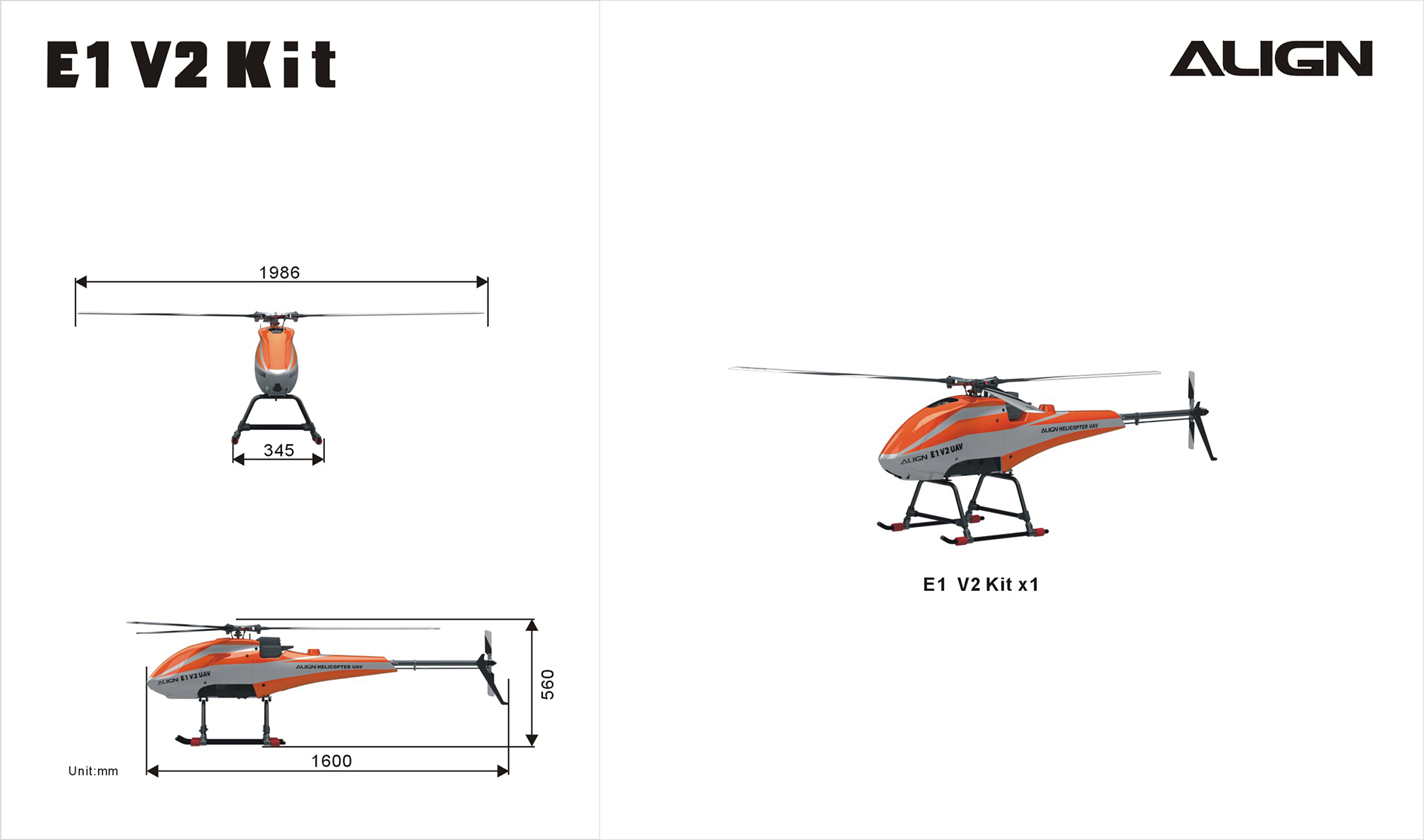

ALIGN E1 V2 KIT Specifications:
●Body Length：1600mm
●Body Height：560mm
●Body Width：345mm
●Main Rotor Length：900mm
●Main Rotor Diameter：1986mm
●Tail Rotor Diameter：303mm
●Power Motor：MX1000 (350KV)
●Weight(Without Battery)：Approx. 7.6kg
●Max. Take-off Weight：24.9kg


Self-provided Equipment (Not Included in the Kit):
●Balance Charger
●Main Power Battery 6S Li-Po 10000~22000mAh x 2 pcs
●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more)
●Flybarless System
●CCPM Brushless Servo x 3
●Rudder Brushless Servo x 1
●Brushless ESC x 1



ALIGN E1 V2 Specifications:

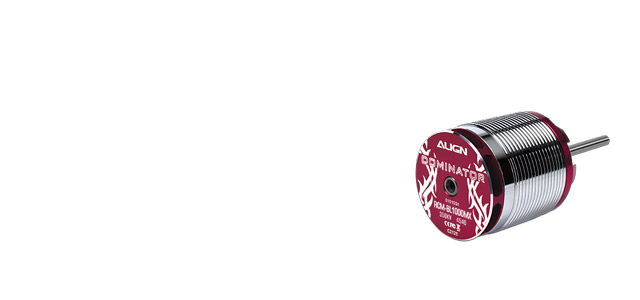

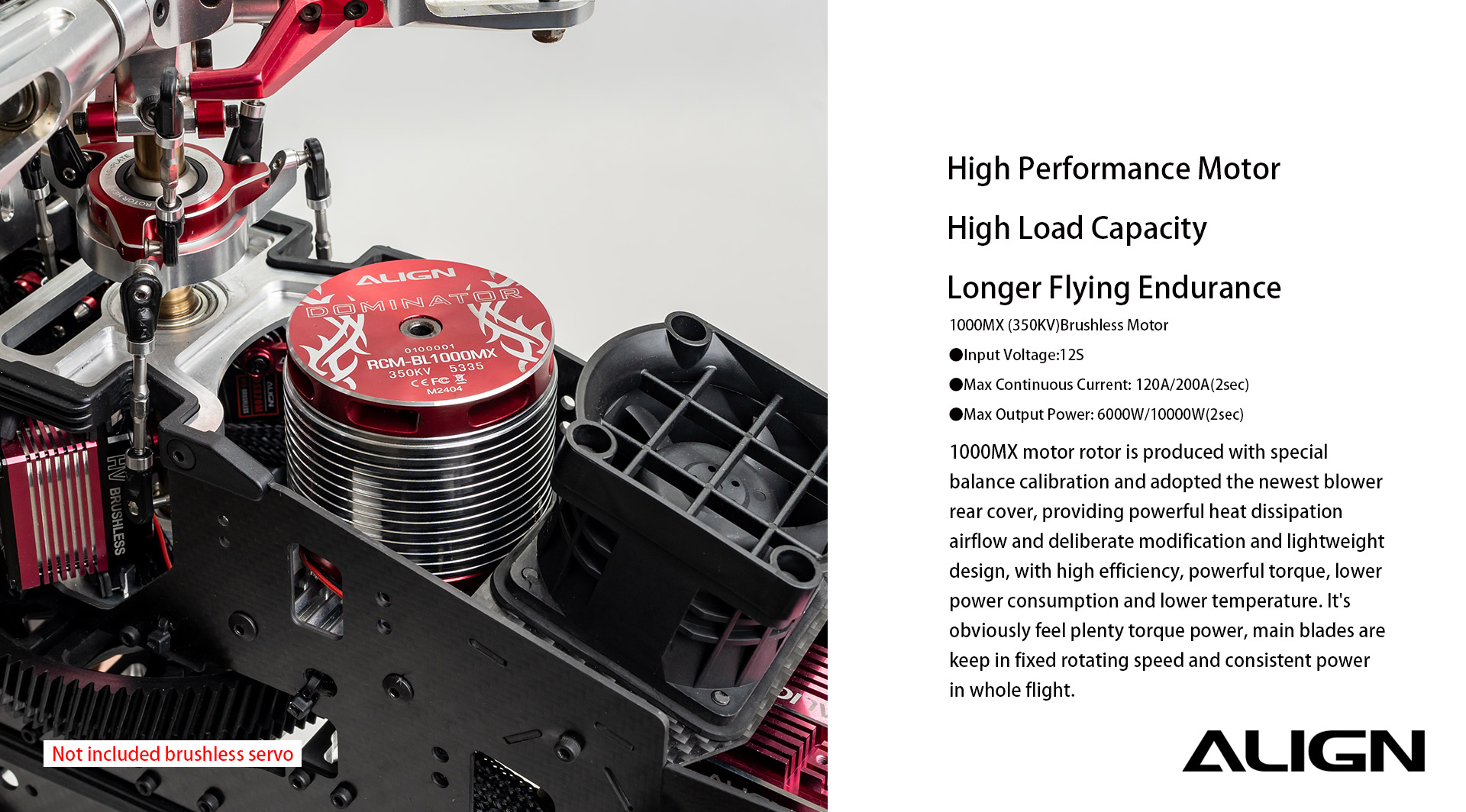

1000MX Brushless Motor
●Input Voltage：12S
●Max Continuous Current：120A/200A(2sec)
●Max Output Power：6000W/10000W(2sec)
●KV Value：350KV
