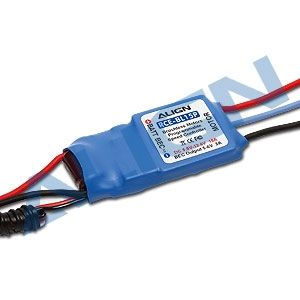

ESC, Align RCE-BL15P Brushless
In stock
SKU
RC63930005 MPN: HES15P01T
US$41.15
ESC, Align RCE-BL15P Brushless
ESC, Align RCE-BL15P Brushless
| Product (HES15P01T): | ||
 | ||
| Product (HES15P01T): | ||
 | ||
| Package: | ||
 | ||
| Instructions: | Specification: | |
| Fearture: ●5-6V step-less adjustable BEC output allowing custom voltage setting to match servo specification. ●BEC output utilizing switching power system, suitable for 7.4-11.1V (2S-3S) Li battery, with continuous current rating of 3A, and burst rating of 5A. ●Three programmable throttle speed settings to support quick throttle response. ●Soft Start and Governor Mode are included. ●Small and compact PCB design for lightweight and simple installation. ●Large heat sink for optimum thermal performance. ●Highly compatible to work with 98% of all brushless motors currently on the market. ●Ultra-smooth motor start designed to run with all kinds of brushless motors. ●The power inlet utilizes a Japanese made "Low ESR" capacitor in order to provide stable power source. ●The throttle has more than 200 step resolution that provides great throttle response and control. | ●Continuous current:15Amps with proper air flow ●Surge current:20Amps ●Supporting motor types:2 poles to 10+poles in/outrunner brushless motors ●Supporting maximum RPM:2poles=>190,000rpm ●Supporting input voltage:5.5V~12.6V ●BEC output voltage: 5-6V step-less adjustment ●Supporting battery types: Li-Po 2~3 cells ●Size:47.6 X 23 X 9.3mm ●Weight:16.4g | |
| Accessories: | ||
| plus ●ALIGN standard 2mm socket terminal X3pcs | ||
| MPN | HES15P01T |
|---|---|
| Brand | Align |
| Dimensions | 47.6 X 23 X 9.3mm |
| Product Weight | 16.4g |
| Heli Category | Heli Parts |
| Sub Category | ESC |
| MPN | HES15P01T |
|---|---|
| Brand | Align |
| Dimensions | 47.6 X 23 X 9.3mm |
| Product Weight | 16.4g |
| Heli Category | Heli Parts |
| Sub Category | ESC |
