Heli, T-Rex 150X Combo

Out of stock
SKU
RC63015006   MPN: RH15E06XT
Special Price US$194.81 Regular Price US$241.99
Heli, T-Rex 150X Combo

Heli, T-Rex 150X Combo

RH15E06XW

Align's smallest and most petite 3D helicopter T-Rex 150X, carries the same superior pedigree and design concept that originated from the successful T-Rex line of helicopters. Featuring strong power, superior flight control stability, and equipped with high end components, far exceeding any other helicopters currently on the market.

Integrate 6-aix gyro, receiver, ESC and Bluetooth controlling system. Set up and update the flight parameter settings via APP Interface. Support for mobile devices, iOS & Android allows easy set up and adjustment to flight parameter settings. The APP makes firmware updates easier to install. Download the FREE APP to get the latest firmware update with additional improved functions. Main motor KV value is increased to 9000KV to deliver outstanding power, torque, and high efficiency with low power consumption delivering outstanding performance. The tail motor provides superior tail authority out performing all other micro heli's on the market.

T-Rex 150X features built in Futaba S-FHSS 2.4Ghz system, and support the use of Spektrum DSM2/DSMX / JR DSM2/DMSS satellite receivers.

Miniature size, control precision that resembles the larger helicopters, enables you to enjoy flying inside a confined space. Beginners can even enjoy this with ease by just turning down the speed. The innovative breakthrough T-Rex 150X will bring you a new dimension of flying enjoyment.

Focus Shots



>br>

RH15E06XW

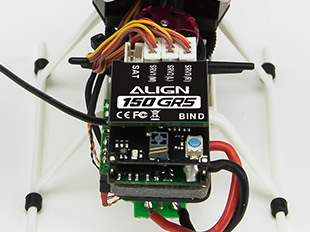

Integrate 6-aix gyro, receiver, ESC and Bluetooth controlling system. Set up and update the flight parameter settings via APP Interface.

RH15E06XW

Support for mobile devices, iOS & Android allows easy set up and adjustment to flight parameter settings. The APP makes firmware updates easier to install. Download the FREE APP to get the latest firmware update with additional improved functions.


RH15E06XW

It adopts high precision CNC metal assemble with high end aesthetics and superior flight performance.

RH15E06XW

Adopt industrial rich-fiber PA material improves the strength and hardness by three times over the original. The new material increases the thickness of the frame structure, reduces warpage, and abrasion while improving impact resistance.


RH15E06XW

4G digital micro servos are specially design for the T-REX 150X to increase micro helicopter control speed, precision, and torque output.

RH15E06XW

150X all metal CNC CCPM swashplate adopts specific embedded technology for fixing bearings, improves the structure strength, and zero slop. The swashplate can withstand 40kg of tension which significantly enhances its durability and lifetime.


RH15E06XW

Main motor KV value is increased to 9000KV to deliver outstanding power, torque, and high efficiency with low power consumption delivering outstanding performance. The tail motor provides superior tail authority out performing all other micro heli's on the market.

RH15E06XW

The new upgraded anti-impact nylon skids improve its toughness, providing the ability to withstand any hits or impacts!


RH15E06XW

The Li-po battery uses a series/balancing design, resulting in efficiency and high discharge capabilities due to machine inspection to match cells.

RH15E06XW

To deliver outstanding flight performance the main blades are manufactured with high-strength industrial fiber composite material with an added aluminum sleeve to decrease torsional stress, and improving durability.


RH15E06XW

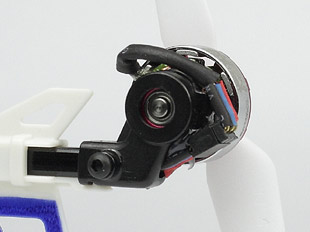

New tail motor plug mount makes maintenance easy.

RH15E06XW

For ease of control the T-REX 150 is equipped with Attitude Mode. Enable Attitude Mode to avoid flip overs during flight. Flip a switch takes over to keep the heli at a level position. These new features make learning to fly more enjoyable, allowing you to practice more flight maneuvers, speeds your ability to learn, and boost flying skills. Fly with Confidence!



Standard Equipment:

●150 Main Blades x 1 Set
●150M Main Motor x 1
●150M Tail Motor x 1
●DS155 Digital Servo x 1
●DS150 Digital Servo x 2
●150 Tail Blades x 1
●150 Remote Extension x 1
●7.4V 250mAh/30C x 1
RH15E06XW


Specifications:

● Length: 255mm
● Height: 80mm
● Main Blade Length: 120mm
● Main Rotor Diameter: 271mm
● Tail Rotor Diameter: 45mm
● Motor Pinion Gear: 10T
● Main Drive Gear: 78T
● Drive Gear Ratio: 1:7.8
● Weight(Without Battery): 55g


Accessories:

●T-REX 150 DFC set x 1
●Main Blades x 1 set
●Tail Blades x 1 set
●150M Main Motor x 1
●150M Tail Motor x 1
●DS155 Digital Servo x 1
●DS150 Digital Servo x 2
●Remote Extension x 1
●7.4V Li-Po 250mAh Li-Polymer Battery x 1
●1.3mm Hexagon screw driver(Blue/8.2g) x 2
●0.9mm Hexagon screw driver(Red/8g) x 1
●Parts box E x 1(78.5x60.9x21mm)
●Parts box A x 1(52x40x12mm)


Radio transmitter and electronic equipment required for assembly:

1.ALIGN T6 or Futaba S-FHSS 2.4G Transmitter. For the use of JR and Spektrum system, require JR DSM2/DMSS, Spektrum DSM2/DSMX 2.4GHz Transmitter and Satellite.








More Information
MPN RH15E06XT
Brand Align
Product Weight 53g
Heli Category Heli Kits
More Information
MPN RH15E06XT
Brand Align
Product Weight 53g
Heli Category Heli Kits
