E1 Auto-Navigation Agricultural Helicopter Three-Blade Rotor Head

US$9,900.00
Out of stock
SKU
RC63120003    MPN: RHE1E03XT
E1 Auto-Navigation Agricultural Helicopter Three-Blade Rotor Head

E1 Auto-Navigation Agricultural Helicopter Three-Blade Rotor Head

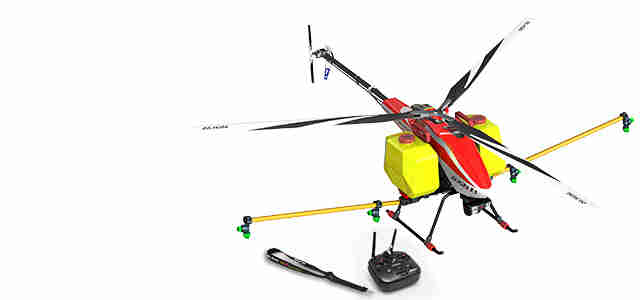

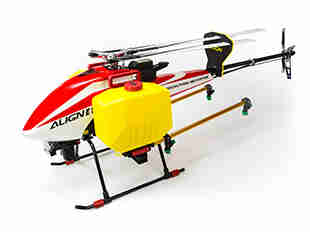

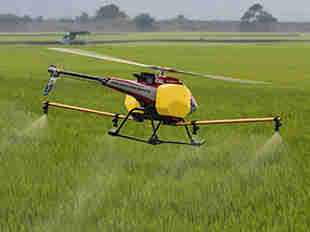

ALIGN E1 Agricultural Helicopter is revolutionizing the way agriculture is done. It’s an advanced helicopter for modern green farming and spraying that can be competed up to 0.48 acres per minute; 30 times faster than traditional machinery. Specially inherit “Helicopter” body design, when it rotates, the strong airflow will carry the spraying directly down to the whole plant leaves and roots reducing the loss cost of spraying.

ALIGN E1 is designed with composite material and 3K Carbon Fiber that is lightweight but extremely durable. Besides, it features well water proof, rust proof and oxidation proof also high quality finish. It’s capable of switching the 15KG chemical containers in 5 seconds reducing the risk of being dangers of exposing ourselves to the pesticide. There are two types of fan-shaped nozzles can be used for adjusting output to different plants.

ALIGN E1 adopt sonar altimeter to detect the terrain height so the helicopter can adjust to maintain the same distance from the plants to provide a uniform spray across all crops. Also it has built-in triple sensor positioning module with GPS, Glonass and BDS system providing precise, stable and real-time positioning. Moreover, it’s compatible with P2 PCU (Power Control Unit) allow to distribute and integrate the power supply safely.

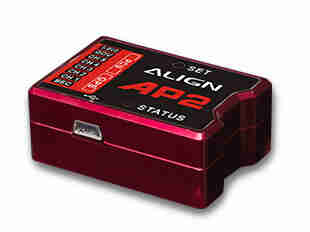

Align AP2 intelligent flight controller has built-in ARM Cortex-M4 32 bits 180MHz processor supports multiple flight modes (such as Attitude/GPS/Intelligent), Auto Return Home and Rescue Return Home, Low Voltage Protection, OSD output and Gimbal Control. Moreover, in our highly integrated ground station, the automated mapping function will compute the best spraying route for you or allow you to map preferred pattern. Other ground station functions like Optical Radar Terrain Detection System, Altitude Positioning, Equipped Video and Spray System Monitoring can also achieve advanced spray capacity for safe, efficient and convenient way to deliver superior crop protection.



Focus Shots

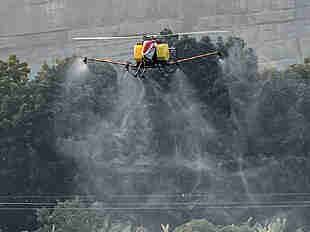

ALIGN E1 can spray up to 0.48 acres per minute, and the average work load per person is 0.24 acres every half hour. Effectively reducing manpower, time and money.

The E1 is designed with automated flight controls. The helicopter has easy operations through the APP to create flight paths and spraying operations.



The blades and spraying tubes can be quickly folded up without tools for more convenient carry.

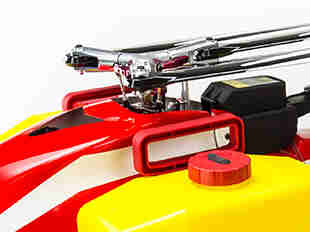

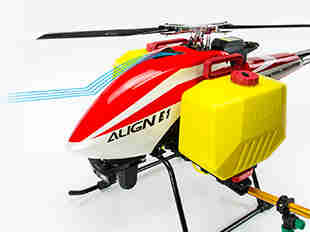

The three-blade rotor head provide superior flight stability with low CG design allow to reduce flying resistance but bring better buoyancy and more precision and rigidity response.



Includes a built-in cooling system to maintain low internal body temperature. The cooling system activates when the internal body temperature increases and continues to operate after the motor is turned off. The cooling system is designed to protect the motor, electronic equipment, and other parts. The APP displays internal temperature information.

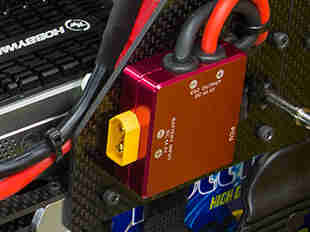

12S main power switch module is designed to control 12S battery and ESC device connection ON/OFF; also can provide power voltage and currency information.



Align AP2 intelligent flight controller has built-in ARM Cortex-M4 32 bits 180MHz processor supports multiple flight modes (such as Attitude/GPS/Intelligent), Auto Return Home and Rescue Return Home, Low Voltage Protection, OSD output and Gimbal Control. Moreover, in our highly integrated ground station, the automated mapping function will compute the best spraying route for you or allow you to map preferred pattern. Other ground station functions like Optical Radar Terrain Detection System, Altitude Positioning, Equipped Video and Spray System Monitoring can also achieve advanced spray capacity for safe, efficient and convenient way to deliver superior crop protection.

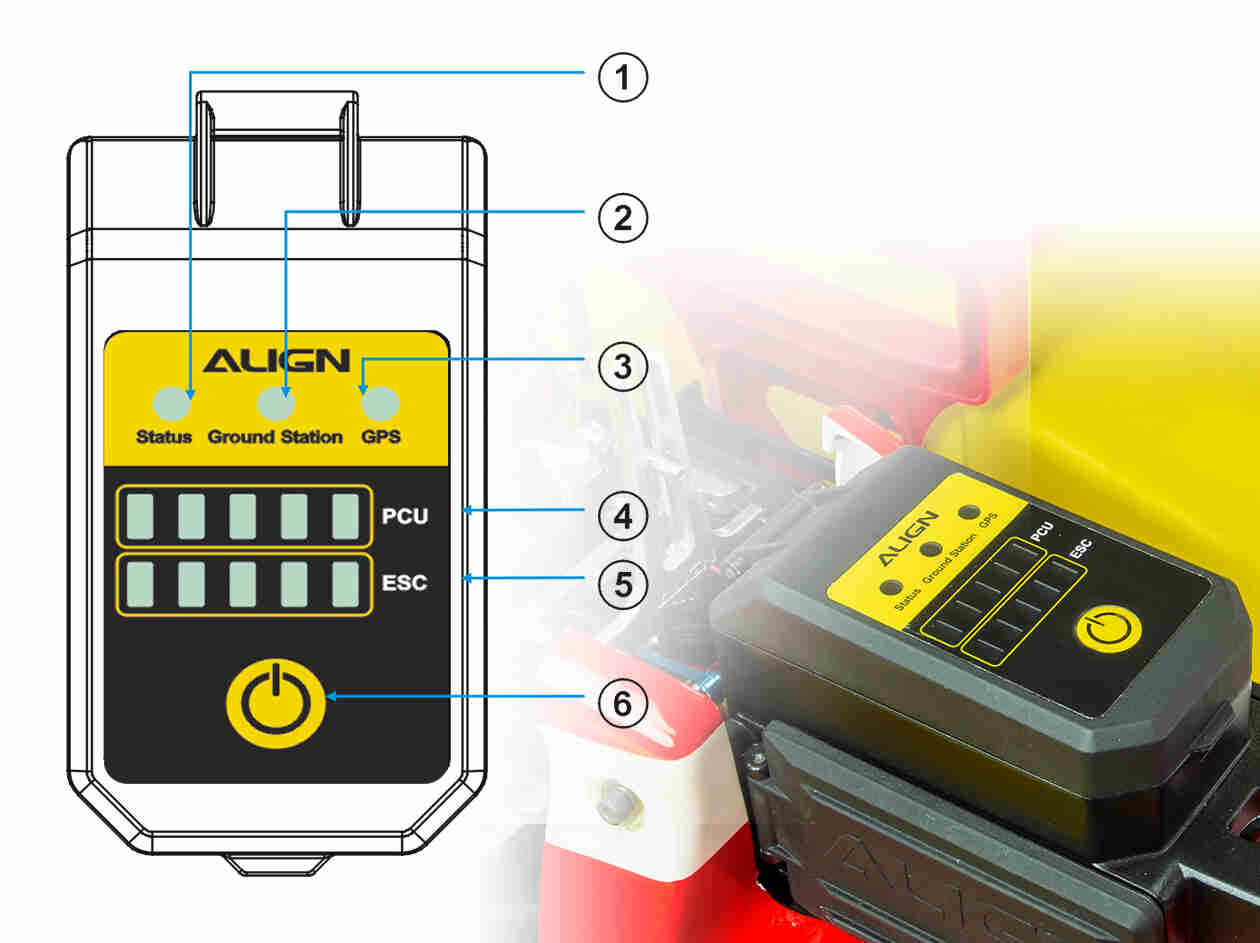

Power control panel is located in the front and on top of the canopy to allow for easy LED status checking.

(1)Flight Controller Status Light(Green Light-Normal / Red Light-Unnormal)
(2)Ground Station Connect Status(Green Light-Connect / Red Light-Unconnect)
(3)GPS Connect Status(Green Light-Position/Red Light- Not Position)
(4)PCU Power
(5)Power Battery Display
(6)Power Button



The P2 PCU(Power Control Unit) integrates into the power management system efficiently supplies power to the motor, engine starter, spray system, flight control system, the navigation system, camera, video transmission, and includes status monitoring display of all power control systems.

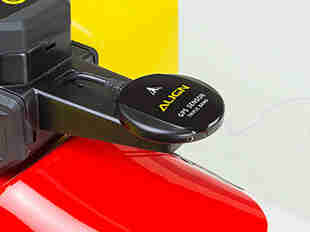

Satellite Positioning Module with (GPS + Glonass) or (GPS + BDS) provide precise, stable and fast positioning in real-time to avoid drift and frequency issue.

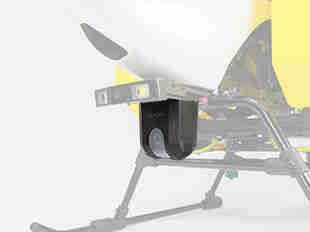

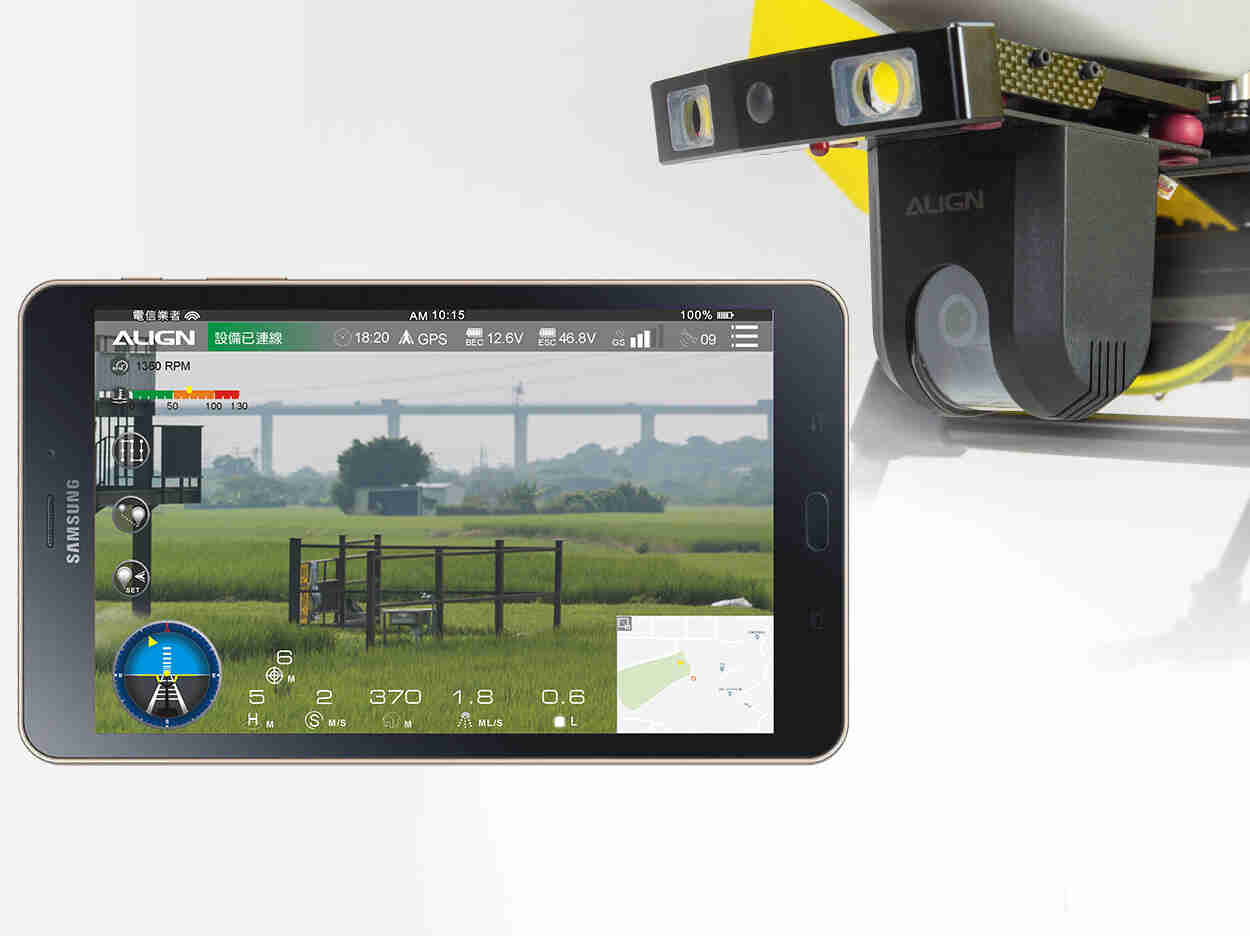

Equipped with 90-degree camera range and 130-degree wide angle. Easily switch to monitor display (POP) to watch video transmission instantly on APP spraying operation monitor in real-time.

Utilizing the FPV camera the pilot can map a precise route for agricultural spraying. Unlike traditional farming and A-B mapping, the helicopter FPV camera mapping is efficient, while saving time.

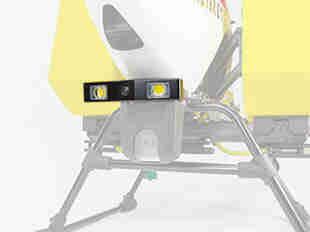

Equipped with a extremely bright LED search headlight, to improve night exploration with better visibility and improved safe night operation.
Specification:Wattage 12W、Avaible Lighting area 30m、Emitted Color:White

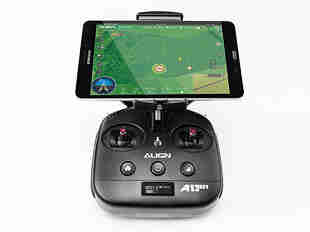

A13 GST is an ergonomic design with a comfortable grip and precision gimbal control. The built-in integration of this new remote control system was developed specifically to allow single button control of multiple functions and to improve flight efficiency. Ground System APP is used to adjust the remote control parameters and custom button mode, so the helicopter maintains the best-performing state.
Using a dual-frequency transmission system, with high-gain antenna, effectively enhancing the anti-jamming capability and picture quality.

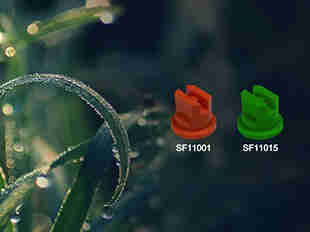

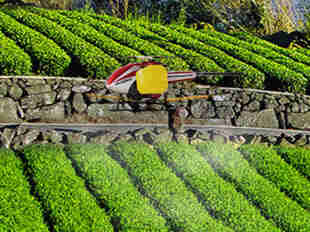

Each sprayer uses a standard fan-shaped nozzle designed to reduced wear and tear to maintain an effective spray pattern also designed to be used on different crops to apply chemicals appropriate for the desired spray application program.
Flexibility to adjust the flow and atomization effect according to required operational needs by choosing either the efficient or strong spray mode. The ALIGN is equipped with four spray nozzles designed to be used on different crops to apply chemicals appropriate for the desired spray application program.

The new spraying technology offers precise and well-distributed spraying controls, to achieve the maximum spray area with minimum chemical use.

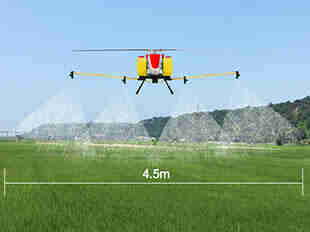

The ALIGN E1 1845mm rotor blade span produces a powerful, consistent downwash allowing for complete chemical coverage deep into the crops.

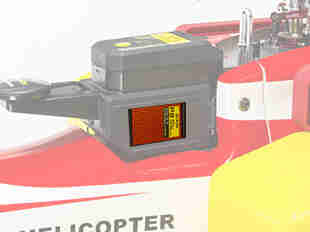

A sonar altimeter is used to detect the terrain height so the helicopter can adjust to maintain the same distance from the plants to provide a uniform spray across all crops.

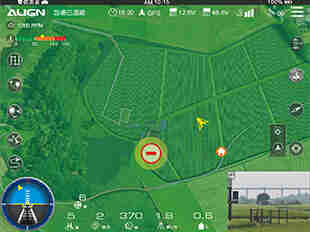

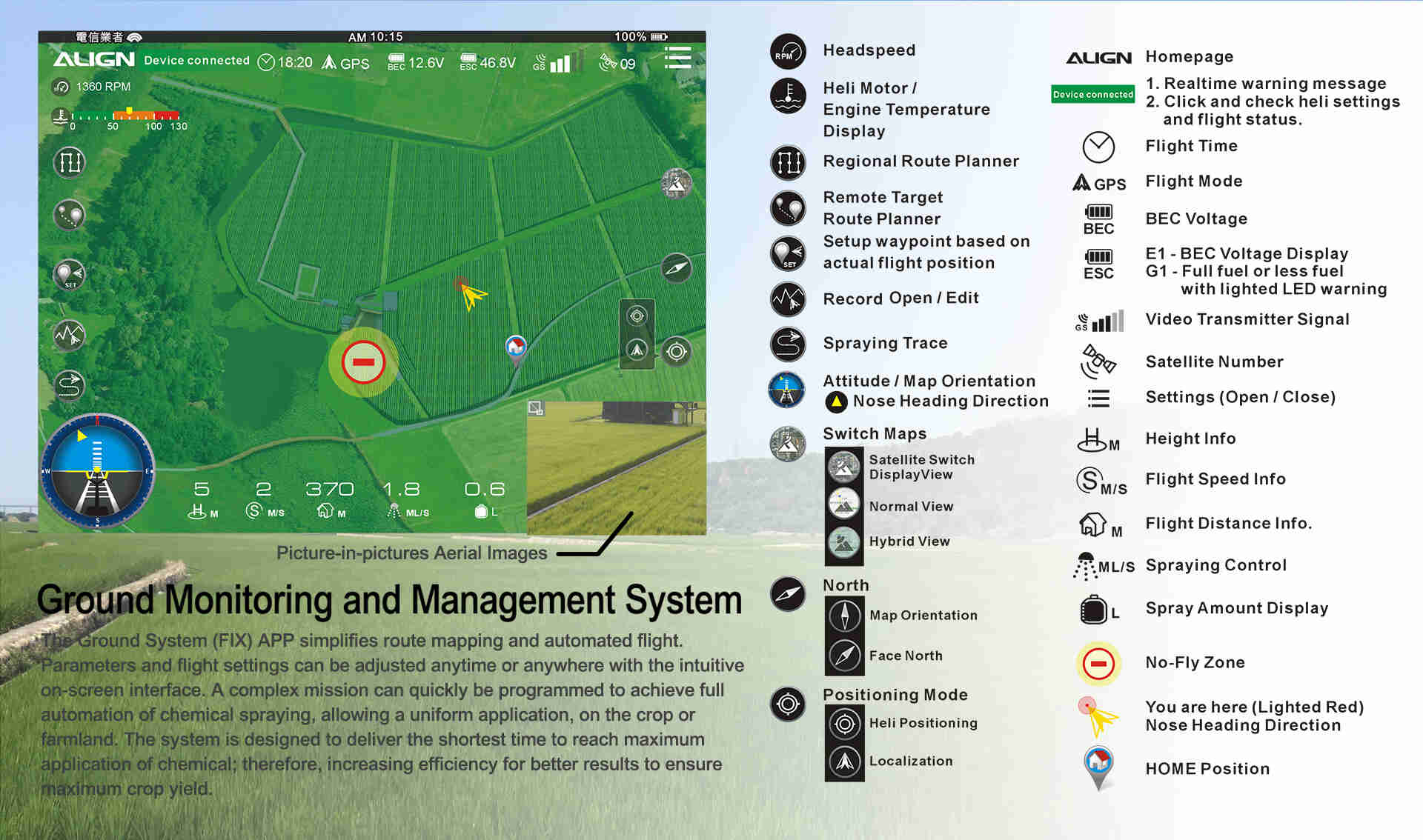

The Ground System APP is used to simplify the configuration of the spray route mapping. Use the drag and drop feature to mark the designated area for spray application. The APP calculates an efficient spray route which is displayed. The spray route can easily be adjusted using the APP. If the amount of liquid, to be sprayed, is entered the Ground System will automatically calculate any remaining parameters, thus conveniently improving the efficiency of route mapping and spray application.
When flying and turning a corner, it'll close Spraying; when moving forward in route, it'll re-start and make sure no Spraying at the same place.

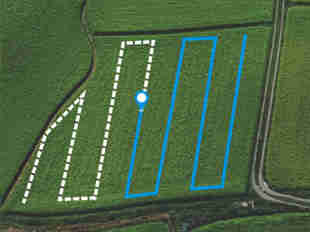

ALIGN E1 incorporates an intelligent route interruption resume function. The AP2 saves the last chemical spray-location. This function allows the helicopter to return to the previous spray location to continue the programmed spray path. This particular feature ensures reliable deployment of chemicals to provide efficient plant protection.

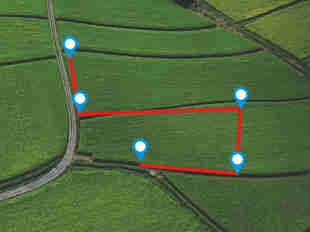

Remote Target Route Planner: use multi-point path coordinates to fly to designate location. Every point path can be set up with flight height, speed and mode.

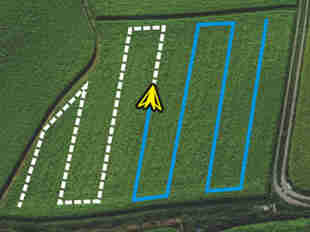

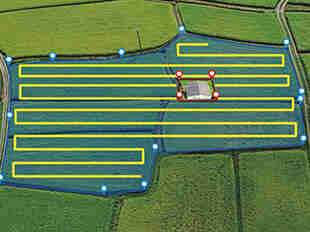

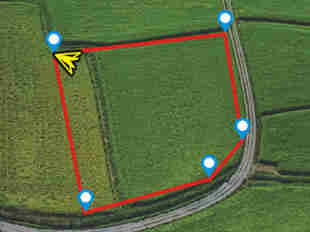

Regional Route Planner : It allows to set route by drawing in AP2 ground station. Or it can set route by actual flying. Fly Helicopter above to the desired location and hover, set up the flight position in ground station one by one, then connect them to be your own regional route.

Through ALIGN highly integrated ground station system, the well-done spraying route will be highlighted with blue color so that users can understand and check their spraying trace for their mission either in auto mode or manual mode, to ensure and not to repeat spraying to the same area.

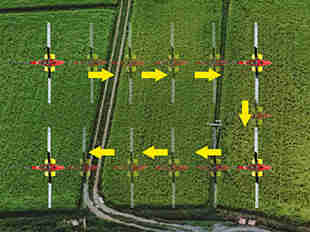

Offer two flight mode (Nose heading to the front or Nose heading to the back) allow to keep the most efficient spraying to save the chemical and reduce the ground pollution.

The Ground Station APP simplifies route mapping to automate flight. A complex mission is quickly programmed to achieve full automation of chemical spraying, applying a uniform application on the crop or farmland. The system is designed to apply the maximum application of chemical in the shortest time to increase efficiency for better results to ensure maximum crop yield.



Flight Monitoring
Display flight path and trajectory. Record all flight information such as flight distance, time, speed, altitude, voltage, current, record flight, and much more.

Task Management

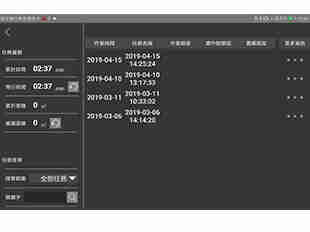

Record each mission; location, time, area, spray flow and path. Quickly transfer a planned spray map route and control settings to implementation as a project.

Track Record
Record each task details: location, time, area, spray flow, chemical, crop type, and so on. Spray operation management will be more efficient, controlled, and redundant spraying is avoided.

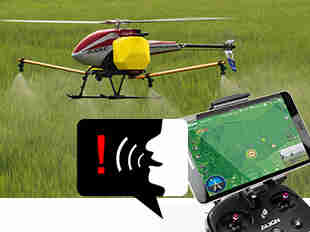

It has a voice reminding when operating any instruction, also has a voice warning when detecting any problem with flight (open/close the voice function and volume contorl via APP).
Warning functions display; low voltage, low fuel, and the number of satellites are less than 10.



When selecting Direct Return three options are available.
1. Fly within a 5-meter range. The APP alerts user before starting the automatic return. Return the original height coordinates and land at a height of 2m above the HOME point.
2. Fly within a 5 to 30-meter range. The APP alerts user before starting the automatic return. The APP prompts for either [original altitude return] or [return after ascending], and then an auto return landing at a height of 2m above the HOME point.
3. Fly in the range of 30-meter away. The APP alerts user before starting the automatic return. The APP prompts for either [return after ascending 10 meters] and landing at a height of 2m above the HOME point.

Note:Auto return speed: 1.5M/s within 5 to 30 meters, 3M or 4M/s outside 30 meters.



Standard Equipment

●ALIGN E1 Kits Set x 1 set
●ALIGN E1 Fuselage x 1 set
●830mm 3K Carbon Fiber Blades x 1 set
●120mm 3K Carbon Fiber Tail Blades x 1 set
●RCE-BL200A Brushless ESC x 1
●RCE-BL35P Pump Brushless ESC x 1
●850MX Brushless Motor(450KV/4535) x 1
●DS825M High Voltage Brushless Servo x 1
●DS820M High Voltage Brushless Servo x 3
●A13 GST Transmitter set x 1 (include A6B Receiver)
●3GX Radio Sling x 1
●AP2 Flight Controller System x 1
●GPS Module x 1
●VTD1 1080 HD Digital Video Transmitter Set x 1
●1080 Gimbal DV Set x 1
●Aluminum Gimbal Mount Bracket x 1
●P2 PCU Power Control Unit x 1
●12S Power Control Module x 1
●Electronic Box x 1
●LED Status Light x 1
●LED Headlight x 1



●Cooling Fan x 1
●Millimeter Wave Radar x 1
●Chemical Detecting Module x 1
●Pump x 1
●7.5L Chemical Container x 2
●Chemical Container Tray x 1
●Spraying Nozzle(SF11015) x 4
●Spraying Tube x 2
●3S Li-Po 2250mAh Battery x 1
●Balance Charger RCC-3SX x 1


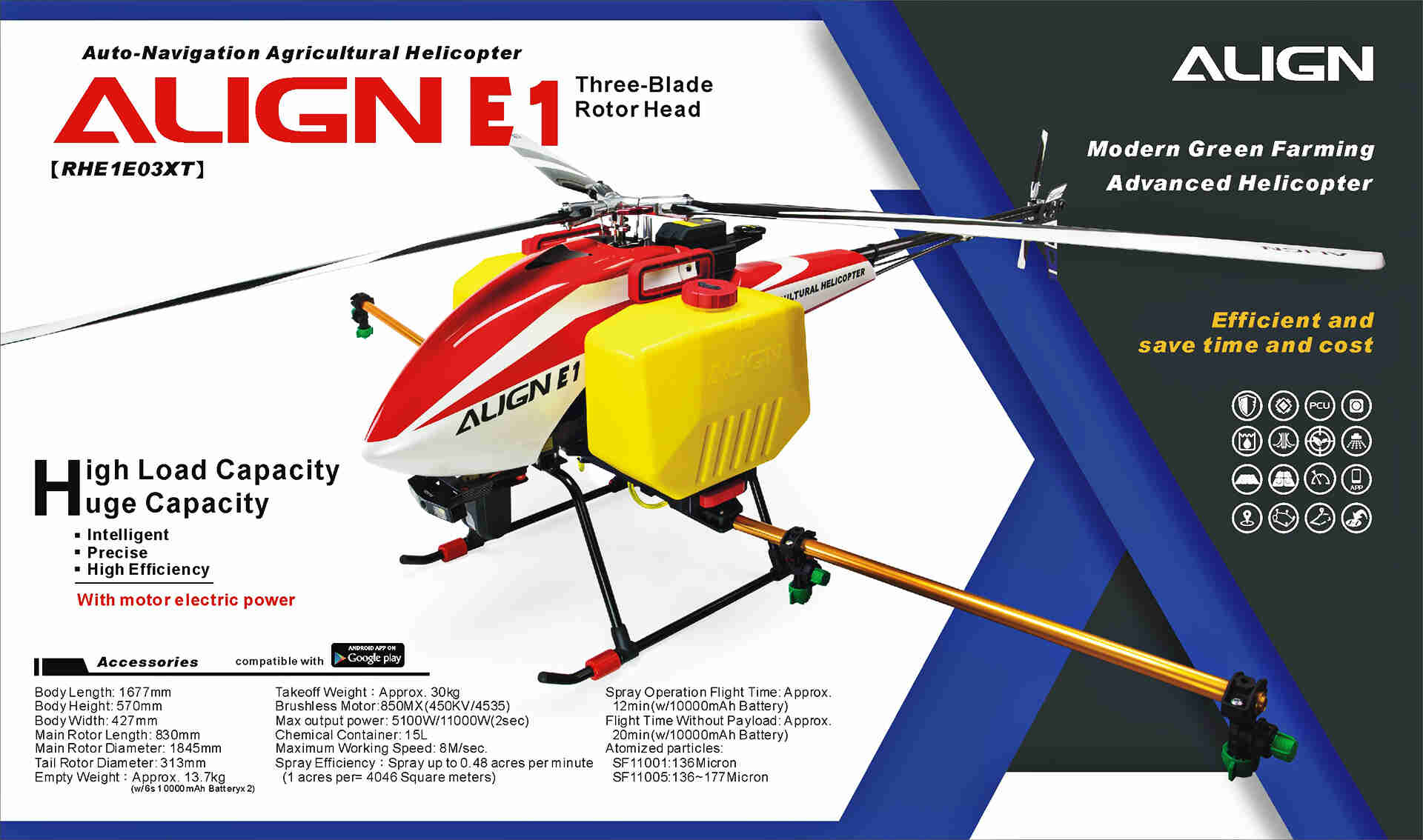

ALIGN E1 Specification

●Body Length:1677mm
●Body Height:570mm
●Body Width:427mm
●Main Rotor Length:830mm
●Main Rotor Diameter:1845mm
●Tail Rotor Diameter:313mm
●Empty Weight:Approx. 13.7kg(w/6S 10000mAh Battery x2)
●Takeoff Weight:Approx. 30kg
●850MX Brushless Motor(450KV/4535)
●Max Output Power:5100W/11000W(2sec)
●Chemical Container:15L
●Maximum Working Speed:8M/sec
●Spray Efficiency:Spray up to 0.48 acres per minute (1 acres per= 4046 Square meters)
●Spray Operation Flight Time:Approx. 12min.(w/10000mAh Battery)
●Flight Time Without Payload:Approx. 20min.(w/10000mAh Battery)
●Spray System
  • Atomized particles:
    SF11001:136 Micron
    SF11005:136~177 Micron

Equipment Required for Assembly

●6S Li-Po 10000mAh Battery(HBP10003) x 2
●Tablet
  • * The AP2 flight controller support iOS V9.0 or better and Android V7.0 or better.
  • * Considering the best working efficiency, the specifications of the tablet or mobile phone are recommended as follows: 4GB RAM, more than 20GB ROM storage space and support 5G Wi-Fi; in order to keep the best and fast performance quality.
  • * The max. dimension of screen bracket is 240x169mm.
●Tablet Suggestions:
  Samsung Galaxy Tab A /
  Model Type:SM-T385

  ASUS ZenPad 3 8.0 /
  Model Type:Z581KL


A13 GST Transmitter

●Channel: 14 channels
●Model Type: Helicopter / Multicopter
●RF Range: 2.4055~2.475GHz
●RF: < 20dBm
●System Mode: 2.4G system AFHDS
●Power: Built-in 2S 7.4V 5200mAh Li-Polymer Battery
●Display: 128x64mm
●Transmit Distance: In the air without interference <1000M
●Weight: 650g
●Dimension: 167x180x103mm
●Certificate: FCC, NCC(CCAK19LP0390T9)

A6B Receiver

●Channel: 14 channels
●RX Sensitivity: -105dBm
●RF Range: 2.4055 ~ 2.475 GHz
●System Mode: 2.4G system AFHDS
●Power: 4.0 ~ 8.4V
●Transmit Distance: In the air without interference <1000M
●Weight: 14g
●Dimension: 46.7x25.5x13.6mm
●Certificate: FCC, NCC(CCAK18LP1930T2)


AP2 Flight Controller System

●Input Voltage:DC 6-8.4V
●Operating Current Consumption:< 300mAh @ 6V
●Operating Frequency:180MHz
●Operating Temperature:-20°C ~ 65°C(-4°F ~ 149°F)
●Hovering Precision (Depending on Satellite Status):Horizontal ±1m(3.28ft),Vertical ±0.5m(1.64ft)
●Maximum Flight Speed:8M/sec
●Maximum Altitude Restriction:300m(984ft) above the takeoff point
●Maximum Angular Speed:Aileron/Elevator 200°/sec, Rudder 400°/sec
●Maximum Tilting Angle:40°
●Supports Helicopter Configurations:ALIGN E1 / G1
●Dimension:43.8x35.5x20.4 mm

VTD1 1080 HD Digital Video Transmitter

●Working Frequency:5~5.9Ghz
●Way of Transmission:SDR Wireless Transmission Frame
●Wide Transmission Distance:1.5~2km
●Emission Power:200mw(23dBm)
●Power Consumption:Transmitter < 2.5W,Receiver < 2W
●Latency:< 40ms
●Video Output:1080P/720P HD Digital Video Transmission
●Mobile Phone/Tablet:Android and Flight Controller OSD Display
●Antenna:5dB Circular Antenna
●Dimension:66x62x13mm
●Weight:41.8g


850MX(450KV/4535)Brushless Motor

●Input Voltage:12S
●Max Continuous Current:115A/250A(2sec)
●Max Output Power:5100W/11000W(2sec)
●Stator Arms:12
●Magnet Poles:10
●Dimension:6x56.7x112.5mm
●Weight:570g

Millimeter Wave Radar

●Emission Frequency:24~24.20 Ghz
●Emission Power ( EIRP ):13~24 dBm
●Measurement Accuracy:±0.02M
●Update Rate:50Hz
●Range Resolution:0.75M
●Working Temperature:-40℃~85℃
●Dimension:92x63x6mm(HxWxD)
●Weight:22g


P2 PCU Power Control Unit

●Input Voltage:7.4V~12.6V
●Operating Frequency:168MHz
●Operating Temperature:-20°C~65°C(-4°F~149°F)
●Dimension:49.5x40.5x26.8mm

1080 Gimbal DV

●Working Voltage : 5~12V
●Image Output: 1080P 30fps
●Lens Angle : 130°
●Aperture: F2.0
●Support Low Light Compensation, 3D/2D Dynamic Noise Reduction, Auto Exposure, Auto Focus, and Auto White Balance
●Capable of Gimbal Control Angle: 0° ~ -90°
●Dimension:100.4x74x111.5mm


Spraying System

●Pump Supply Voltage:12V
●Pump Power Consumption:3A
●Flow Detecting:Chemical Volume Spray Detecting
●Flow Control:Spray Calculator( 0~2 L/min )
●Container Volume:15L
●Pump Control:Spray Amount Setting( 0~2 L/min )

Standard Spraying Nozzle

●Model No.:SF11015(Green) 100~120
●Atomized Particles:136~177μm
●Spraying Speed:MAX 100%
●Spraying Time(10L with 4 spraying nozzle):5min
●Liquid Sprayed (Per spraying nozzle)L/min:0.5
●Spraying Angle:Fan-shaped nozzle 110 degrees.
More Information
MPN RHE1E03XT
Brand Align
Heli Category Heli Kits
Write Your Own Review
You're reviewing:E1 Auto-Navigation Agricultural Helicopter Three-Blade Rotor Head
Your Rating

(Last Update: 24 Jun 2019)
